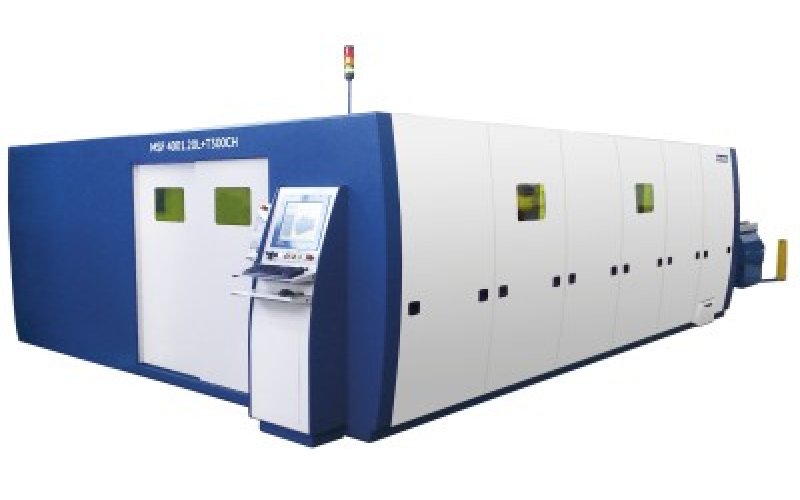

MSF machine is a powerful laser cutting system for cutting of materials with a fiber laser, or a combination of fiber laser and plasma. The machine is designed for production of highly accurate parts at high cutting speeds, with surprisingly low maintenance and operational costs. The outstanding dynamics of MSF is achieved by a low-seated gantry, digital AC drives and precise planetary gears. The machine is by default equipped with an automatic shuttle table.
| Working length | 1000 - 12000 mm |
| Working width | 1500 - 3000 mm |
| Max. number of tool stations | 2 |
| Max. thickness of material cut by laser | according to laser source |
| Max. thickness of material cut by plasma | according to plasma source |
| Bevel cutting | yes (see accessories) |
| Pipe cutting | Ø 30 - 500 mm |
| Drilling and tapping | inquire individually |
| Positioning speed | max 183 m/min |
| Bidirectional repeatability | 0.03 mm/m |
